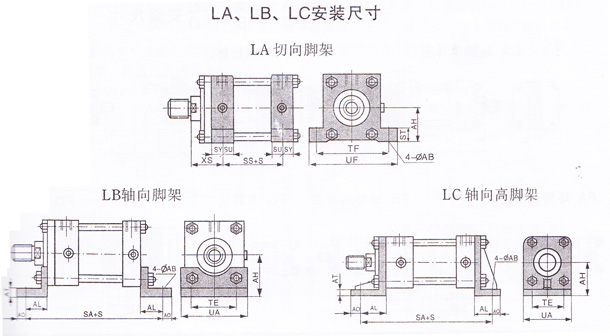

缸径D
|
40
|
50
|
63
|
80
|
100
|
125
|
140
|
150
|
160
|
180
|
200
|
220
|
250
|
|
ΦAB
|
11
|
14
|
18
|
18
|
22
|
26
|
26
|
30
|
33
|
33
|
36
|
42
|
45
|
|
LA
|
AH
|
37.5
±0.15
|
45
±0.15
|
50
±0.15
|
60
±0.25
|
71
±0.25
|
85
±0.25
|
95
±0.25
|
105
±0.25
|
112
±0.25
|
125
±0.25
|
140
±0.25
|
150
±0.25
|
170
±0.25
|
|
SS
|
98
|
108
|
106
|
124
|
122
|
136
|
144
|
146
|
150
|
172
|
186
|
186
|
206
|
|
ST
|
14
|
17
|
19
|
25
|
27
|
32
|
35
|
37
|
42
|
47
|
52
|
52
|
57
|
|
SU
|
31
|
34
|
32
|
42
|
38
|
41
|
41
|
38
|
40
|
-
|
-
|
-
|
|
|
SY
|
13
|
14
|
18
|
18
|
22
|
25
|
25
|
28
|
31
|
35
|
39
|
39
|
47
|
|
TF
|
95
|
115
|
132
|
155
|
190
|
224
|
250
|
270
|
285
|
315
|
355
|
395
|
425
|
|
UF
|
118
|
145
|
165
|
190
|
230
|
272
|
30
|
320
|
345
|
375
|
425
|
475
|
515
|
|
XS
|
57
|
60
|
71
|
74
|
85
|
99
|
106
|
111
|
122
|
123
|
131
|
140
|
158
|
|
L B
C
|
AH
|
43
±0.15
|
50
±0.15
|
60
±0.15
|
72
±0.25
|
85
±0.25
|
105
±0.25
|
115
±0.25
|
123
±0.25
|
132
±0.25
|
148
±0.25
|
165
±0.25
|
145
±0.25
|
208
±0.25
|
|
AL
|
32
|
35
|
42
|
50
|
55
|
60
|
70
|
75
|
75
|
85
|
98
|
115
|
130
|
|
SA
|
205
|
225
|
247
|
254
|
302
|
370
|
370
|
390
|
403
|
445
|
497
|
535
|
606
|
|
AO
|
13
|
15
|
18
|
20
|
23
|
30
|
30
|
30
|
35
|
40
|
40
|
45
|
50
|
|
AT
|
8
|
8
|
10
|
12
|
12
|
18
|
18
|
18
|
18
|
20
|
25
|
30
|
35
|
|
TE
|
46
|
58
|
65
|
87
|
109
|
145
|
145
|
155
|
170
|
185
|
206
|
230
|
250
|
|
UA
|
69
|
85
|
98
|
118
|
150
|
195
|
195
|
210
|
225
|
243
|
272
|
310
|
335
|
|
