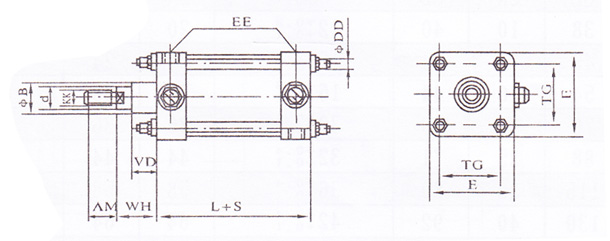

外形和安装尺寸
基本型
基本型尺寸
|
缸径
|
d
|
KK
|
AM
|
EE
|
B
|
WH
|
VD
|
L
|
DD
|
TG
|
E
|
|
32
|
12
|
M10*1.25
|
22
|
M10*1
|
30
|
24
|
15
|
98
|
M6
|
35
|
50
|
|
40
|
16
|
M12*1.25
|
24
|
M14*1.5
|
30
|
30
|
23
|
105
|
M6
|
48
|
55
|
|
50
|
20
|
M16*1.5
|
32
|
M14*1.5
|
35
|
35
|
25
|
110
|
M6
|
48
|
65
|
|
63
|
20
|
M16*1.5
|
32
|
M18*1.5
|
40
|
35
|
25
|
125
|
M8
|
58
|
80
|
|
80
|
25
|
M20*1.5
|
40
|
M18*1.5
|
50
|
46
|
30
|
128
|
M10
|
75
|
100
|
|
100
|
25
|
M20*1.5
|
40
|
M22*1.5
|
50
|
51
|
35
|
138
|
M10
|
90
|
120
|
|
125
|
32
|
M27*2
|
54
|
M22*1.5
|
60
|
61
|
44
|
168
|
M12
|
110
|
140
|
|
160
|
45
|
M36*2
|
72
|
M27*2
|
80
|
80
|
50
|
180
|
M16
|
142
|
180
|
|
200
|
45
|
M36*2
|
72
|
M27*2
|
80
|
90
|
55
|
190
|
M16
|
180
|
220
|
|
250
|
50
|
M42*2
|
84
|
M33*2
|
90
|
105
|
70
|
200
|
M20
|
216
|
280
|
|
320
|
63
|
M48*2
|
96
|
M33*2
|
105
|
120
|
75
|
225
|
M24
|
270
|
350
|

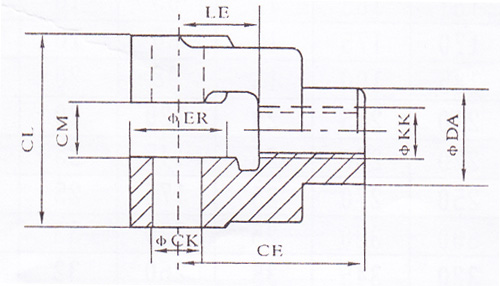

活塞杆用连接件（代号LZ）外形尺寸图表
|
