轴销式安装形式

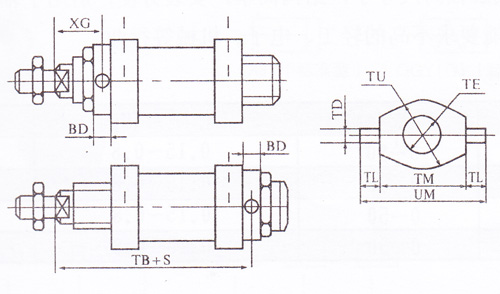

MT1头部轴销
MT2尾部轴销 |
 |
| |
|

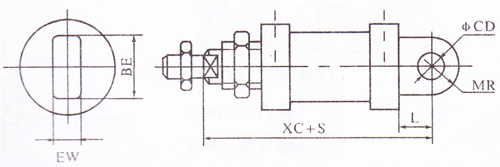

| MP3尾部单耳座轴销 |
|
| |
|
| MP4尾部可拆式单耳座轴销 |
|
轴销式安装尺寸
|
缸径
|
MT1、MT2安装型
|
MT3、MT4安装型
|
|
XG
|
BD
|
TD
|
TU
|
TE
|
TL
|
TM
|
UM
|
TB
|
EW BE
|
XC
|
ΦCD
|
MR
|
L
|
XC1
|
|
20
|
19
|
10
|
Φ8
|
32
|
Φ22.5
|
8
|
36
|
52
|
88
|
12 Φ18
|
95
|
8
|
R9
|
12
|
113
|
|
25
|
23
|
10
|
Φ8
|
32
|
Φ22.5
|
8
|
42
|
58
|
97
|
14 Φ20
|
104
|
8
|
R10
|
12
|
124
|
|
32
|
24
|
12
|
Φ10
|
36
|
Φ24.5
|
10
|
44
|
64
|
106
|
14 Φ22
|
114
|
10
|
R11
|
14
|
136
|
|
40
|
25
|
14
|
Φ12
|
44
|
Φ30.5
|
12
|
60
|
84
|
111
|
16 Φ24
|
120
|
12
|
R12
|
16
|
144
|
|
50
|
28
|
14
|
Φ12
|
50
|
Φ36.5
|
14
|
72
|
100
|
118
|
18 Φ30
|
131
|
12
|
R15
|
20
|
161
|
|
