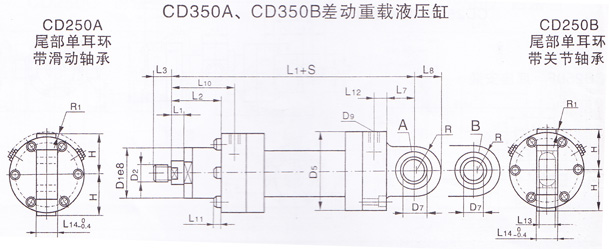

缸径D
|
40
|
50
|
63
|
80
|
100
|
125
|
140
|
160
|
180
|
200
|
220
|
250
|
280
|
320
|
|
杆径d
|
28
|
35
|
45
|
55
|
70
|
90
|
100
|
110
|
125
|
140
|
160
|
180
|
200
|
220
|
|
|
D1
|
58
|
70
|
88
|
100
|
120
|
150
|
170
|
190
|
220
|
230
|
260
|
290
|
330
|
340
|
|
D2
|
A
|
M24
×2
|
M30
×2
|
M39
×2
|
M50
×3
|
M64
×3
|
M80
×3
|
M90
×3
|
M100
×3
|
M110
×4
|
M120
×4
|
M120
×4
|
M150
×4
|
M160
×4
|
M180
×4
|
|
G
|
M22
×1.5
|
M28
×1.5
|
M35
×1.5
|
M45
×1.5
|
M58
×1.5
|
M65
×1.5
|
M80
×2
|
M100
×2
|
M110
×2
|
M120
×3
|
M120
×3
|
M130
×3
|
-
|
-
|
|
D5
|
90
|
110
|
145
|
156
|
190
|
235
|
270
|
290
|
325
|
350
|
390
|
440
|
460
|
490
|
|
D7
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
90
|
100
|
110
|
110
|
120
|
140
|
160
|
|
D9
|
01
|
1/2″
BSP
|
1/2″
BSP
|
3/4″
BSP
|
3/4″
BSP
|
1″
BSP
|
11/4″BSP
|
11/2″BSP
|
11/2″BSP
|
11/2″BSP
|
11/2″BSP
|
11/2″BSP
|
11/2″BSP
|
11/2″BSP
|
11/2″BSP
|
|
02
|
M22
×1.5
|
M22
×1.5
|
M27
×2
|
M27
×2
|
M33
×2
|
M42
×2
|
M42
×2
|
M48
×2
|
M48
×2
|
M48
×2
|
M48
×2
|
M48
×2
|
M48
×2
|
M48
×2
|
|
L
|
268
|
280
|
330
|
355
|
390
|
495
|
530
|
600
|
665
|
710
|
760
|
825
|
895
|
965
|
|
L1
|
18
|
18
|
18
|
18
|
18
|
20
|
20
|
30
|
30
|
26
|
18
|
16
|
30
|
45
|
|
L2
|
63
|
65
|
65
|
75
|
80
|
100
|
110
|
130
|
145
|
155
|
165
|
175
|
190
|
205
|
|
L3
|
A
|
35
|
45
|
55
|
75
|
95
|
110
|
120
|
140
|
150
|
160
|
160
|
190
|
200
|
220
|
|
G
|
22
|
28
|
35
|
45
|
58
|
65
|
80
|
100
|
110
|
120
|
120
|
130
|
-
|
-
|
|
L7
|
35
|
43
|
50/57.5
|
55
|
65
|
75
|
80
|
90
|
105
|
115
|
115
|
140
|
170
|
200
|
|
L8
|
34
|
41
|
50
|
63
|
70
|
82
|
95
|
113
|
125
|
142.5
|
142.5
|
180
|
200
|
250
|
|
L10
|
88
|
90
|
100
|
111
|
112.5
|
145
|
160
|
187.5
|
205
|
215
|
225
|
245
|
265
|
275
|
|
L11
|
8
|
10
|
12
|
16
|
20
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
L12
|
20
|
25
|
35/27.5
|
30
|
32.5
|
45
|
50
|
57.5
|
60
|
55
|
55
|
60
|
85
|
70
|
|
L14
|
20
-0.4
|
30
-0.4
|
35
-0.4
|
40
-0.4
|
50
-0.4
|
55
-0.4
|
60
-0.4
|
65
-0.4
|
70
-0.4
|
80
-0.4
|
80
-0.4
|
90
-0.4
|
100
-0.4
|
110
-0.4
|
|
H
|
-
|
-
|
74
|
78
|
97.5
|
118
|
137.5
|
147.5
|
162.5
|
177.5
|
197.5
|
222.5
|
232
|
250
|
|
R
|
32
|
39
|
47
|
58
|
65
|
77
|
88
|
103
|
115
|
132.5
|
132.5
|
170
|
190
|
240
|
|
R1
|
5/6
|
-/4
|
-/12.5
|
-/7
|
-/10
|
-
|
-
|
15/-
|
10/-
|
2/-
|
-
|
-
|
-
|
-
|
|
系数X
|
12
|
18
|
46
|
54
|
83
|
164
|
246
|
338
|
369
|
554
|
700
|
901
|
1077
|
1458
|
|
系数Y
|
0.010
|
0.016
|
0.029
|
0.051
|
0.076
|
0.116
|
0.163
|
0.213
|
0.264
|
0.317
|
0.418
|
0.541
|
0.584
|
0.685
|
|
重量kg
|
M=X+Y+S
|
|
CD350B
|
L13
|
22
-0.12
|
25
-0.12
|
28
-0.12
|
35
-0.12
|
44
-0.15
|
49
-0.15
|
55
-0.15
|
60
-0.2
|
70
-0.2
|
70
-0.2
|
70
-0.2
|
85
-0.2
|
90
-0.25
|
105
-0.25
|
|
