缸径D
|
40
|
50
|
63
|
80
|
100
|
125
|
140
|
160
|
180
|
200
|
220
|
250
|
280
|
320
|
|
杆径d
|
28
|
35
|
45
|
55
|
70
|
90
|
100
|
110
|
125
|
140
|
160
|
180
|
200
|
220
|
|

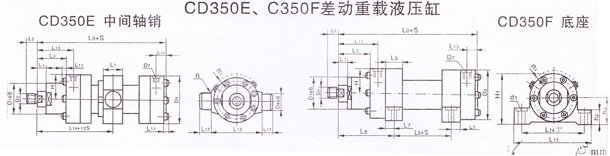

CD350E·F
|
D1
|
58
|
70
|
88
|
100
|
120
|
150
|
170
|
190
|
220
|
230
|
260
|
290
|
330
|
340
|
|
D2
|
A
|
M24
×2
|
M30
×2
|
M39
×3
|
M50
×3
|
M64
×3
|
M80
×3
|
M90
×3
|
M100
×3
|
M110
×4
|
M120
×4
|
M120
×4
|
M150
×4
|
M160
×4
|
M180
×4
|
|
G
|
M22
×1.5
|
M28
×1.5
|
M35
×1.5
|
M45
×1.5
|
M58
×1.5
|
M65
×1.5
|
M80
×2
|
M100
×2
|
M110
×2
|
M120
×3
|
M120
×3
|
M130
×3
|
-
|
-
|
|
D5
|
90
|
110
|
145
|
156
|
190
|
235
|
270
|
290
|
325
|
350
|
390
|
440
|
460
|
490
|
|
D7
|
01
|
1/2”BSP
|
3/4”BSP
|
1”BSP
|
11/4”BSP
|
11/2”BSP
|
|
02
|
M22×1.5
|
M27×2
|
M33×2
|
M42×2
|
M48×2
|
|
L0
|
238
|
237
|
285
|
305
|
330
|
425
|
457
|
515
|
565
|
600
|
655
|
695
|
735
|
775
|
|
L1
|
18
|
18
|
18
|
18
|
18
|
20
|
20
|
30
|
30
|
26
|
18
|
16
|
30
|
45
|
|
L2
|
A
|
35
|
45
|
55
|
75
|
95
|
110
|
120
|
140
|
150
|
160
|
160
|
190
|
200
|
220
|
|
G
|
22
|
28
|
35
|
45
|
58
|
65
|
80
|
100
|
110
|
120
|
120
|
130
|
-
|
-
|
|
L3
|
63
|
65
|
65
|
75
|
80
|
100
|
110
|
130
|
145
|
155
|
165
|
175
|
190
|
205
|
|
CD350E
|
L12
|
88
|
90
|
100
|
111
|
112.5
|
145
|
160
|
187.5
|
205
|
215
|
225
|
245
|
265
|
275
|
|
L13
|
25
|
25
|
32.5
|
35
|
37.5
|
50
|
57
|
62.5
|
65
|
60
|
65
|
70
|
85
|
80
|
|
D8
|
40
|
40
|
45
|
55
|
60
|
75
|
85
|
95
|
110
|
120
|
130
|
140
|
170
|
200
|
|
L7
|
50
|
50
|
50
|
60
|
65
|
80
|
90
|
100
|
115
|
125
|
135
|
145
|
180
|
210
|
|
按用户要求定
|
|
L11
|
8
|
10
|
12
|
16
|
20
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
L16
|
92
-0.2
|
120
-0.2
|
150
-0.2
|
160
-0.2
|
200
-0.2
|
245
-0.5
|
280-0.5
|
300-0.5
|
335-0.5
|
360-0.5
|
400-0.5
|
450-0.5
|
480-0.5
|
500
-0.5
|
|
L17
|
30
|
30
|
35
|
50
|
55
|
60
|
70
|
80
|
90
|
100
|
100
|
100
|
125
|
150
|
|
H
|
45
|
55
|
74
|
78
|
97.5
|
118
|
137.5
|
147.5
|
163
|
177.5
|
197.5
|
222.5
|
232
|
250
|
|
R1
|
5/6
|
-/4
|
-/12.5
|
-/7
|
-/10
|
-
|
-
|
15/-
|
10/-
|
2/-
|
-
|
-
|
-
|
-
|
|
系数X
|
11
|
16
|
34
|
43
|
67
|
133
|
213
|
278
|
312
|
468
|
598
|
775
|
1015
|
1362
|
|
CD350F
|
L6
|
30
|
40
|
50
|
60
|
65
|
80
|
90
|
95
|
115
|
125
|
135
|
145
|
160
|
170
|
|
L7
|
15
|
20
|
25
|
30
|
32.5
|
40
|
45
|
47.5
|
57.5
|
62.5
|
67.5
|
72.5
|
80
|
85
|
|
L8
|
123
|
130
|
147.5
|
162.5
|
172.5
|
220
|
235
|
270
|
297.5
|
312.5
|
337.5
|
362.5
|
385
|
410
|
|
L14±0.2
|
120
|
150
|
185
|
210
|
250
|
310
|
340
|
370
|
415
|
460
|
500
|
550
|
600
|
650
|
|
L15
|
145
|
185
|
235
|
270
|
320
|
390
|
420
|
450
|
515
|
570
|
610
|
660
|
720
|
780
|
|
d1
|
17
|
21
|
24
|
26
|
33
|
39
|
39
|
42
|
45
|
48
|
48
|
52
|
62
|
74
|
|
h2
|
30
|
35
|
45
|
50
|
60
|
70
|
75
|
87
|
95
|
110
|
110
|
120
|
140
|
160
|
|
h3
|
50
|
65
|
75
|
80
|
100
|
120
|
140
|
150
|
165
|
180
|
200
|
225
|
235
|
255
|
|
h4
|
-
|
-
|
149
|
158
|
197.5
|
238
|
227.5
|
297.5
|
327.5
|
357.5
|
397.5
|
447.5
|
467
|
505
|
|
系数x
|
11
|
17
|
37
|
47
|
73
|
132
|
208
|
307
|
357
|
499
|
665
|
814
|
1069
|
1304
|
|
CD350EF
|
系数Y
|
0.010
|
0.016
|
0.029
|
0.051
|
0.076
|
0.116
|
0.163
|
0.213
|
0.264
|
0.317
|
0.418
|
0.541
|
0.584
|
0.685
|
|
重量Kg
|
M=X+Y+S
|
|
