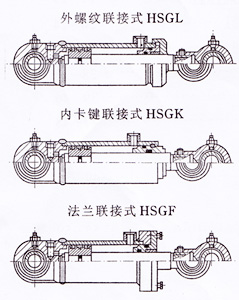

本系列液压缸具有结构简单、工作可靠、装拆方便、易于维修，可带缓冲装置及安装型式多样等特点，适用于工程机械、起重、运输机械及矿山机械的液压传动。工作压力16MPa，缸径40~250mm。
 |
规格/技术参数
|
缸径Dmm
|
杆径dmm
速比Φ
|
16Mpa
|
******行程mm
|
|
推力KN
|
拉力KN
|
|
1.33
|
1.46
|
2
|
1.33
|
1.46
|
2
|
|
40
|
20
|
22
|
25
|
20.11
|
15.08
|
14.02
|
12.25
|
500
|
|
50
|
25
|
28
|
32
|
31.42
|
23.56
|
21.56
|
18.55
|
600
|
|
63
|
32
|
35
|
45
|
49.88
|
37.01
|
34.48
|
24.43
|
800
|
|
80
|
40
|
45
|
55
|
80.42
|
60.32
|
54.98
|
42.41
|
2000
|
|
90
|
45
|
50
|
63
|
101.79
|
76.32
|
70.37
|
51.91
|
2000
|
|
100
|
50
|
55
|
70
|
125.66
|
94.25
|
87.95
|
64.08
|
4000
|
|
110
|
55
|
63
|
80
|
152.06
|
114.04
|
102.18
|
71.63
|
4000
|
|
125
|
63
|
70
|
90
|
196.35
|
146.47
|
134.77
|
94.56
|
4000
|
|
140
|
70
|
80
|
100
|
246.30
|
184.73
|
165.88
|
120.54
|
4000
|
|
150
|
75
|
85
|
105
|
282.74
|
212.06
|
191.95
|
144.20
|
4000
|
|
160
|
80
|
90
|
110
|
321.70
|
241.27
|
219.91
|
169.65
|
4000
|
|
180
|
90
|
100
|
125
|
407.15
|
305.36
|
281.49
|
210.80
|
4000
|
|
200
|
100
|
110
|
140
|
502.64
|
376.99
|
350.60
|
256.35
|
4000
|
|
220
|
110
|
125
|
160
|
608.21
|
456.16
|
411.86
|
286.51
|
4000
|
|
250
|
125
|
140
|
180
|
785.40
|
589.05
|
539.10
|
378.25
|
4000
|
|
|
